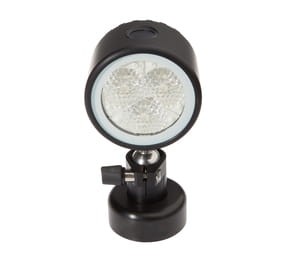

AO000334, LED-Light 65rd 12V AC/12-28V DC,5W,30°,M12-plug
Regular price:
product unavailable
add to wish list
0
Description
LED lights are required in nearly every industrial sector. A lighting coordinated on the respective workplace ensures a better visibility, increases the production quality, the working safety and helps additionally to safe energy costs. Their long lifetime, which is independent of switching cycles, reduces maintenance costs and increases the availability. LED lights are used for the illumination of workplaces, work areas of machines, control cabinets and several other fields of application.
Circuit diagram: Link
Colours: 1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black) Functions: 1 = n. c., 2 = n. c., 3 = L-, 4 = L+
Files to download:
Technical data
| type of light | swan neck light |
| housing design | special construction |
| diameter-round | ø65mm |
| Length | 600mm |
| light color | cold white |
| IP system of protection | IP64 |
| voltage type | AC/DC |
| connection | connector M12 |
| Housing material | aluminum |
| Front screen material | borosilicate glass |
| beam angle | 30* |
| with magnetic base | yes |
| with ON/OFF switch | yes |
