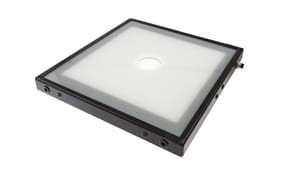

AO98E241, accessory - camera, red,200x190x20,1xDrill-hole Ø30 24V DC,M8-plug 4 pole,IP40
Regular price:
product unavailable
add to wish list
0
Description
For any kind of inspection tasks with a camera sensor the lighting is essential, as only high-contrast images enable reproducible evaluations. Here the lighting has a decisive influence. The choice depends on different factors such as the distance to the test object, its size, the component criteria to be tested or the expected environmental conditions.
Files to download:
Technical data
| Front screen material | Acrylic glass |
| voltage type | DC |
| Max. current consumption | 250mA |
| number of pins | 4 |
| With lamp | yes |
| Light version | Surface area light |
| material | aluminum |
| housing design | cuboid |
| light color | Polarity free red light |
| IP system of protection | IP40 |
| connection | M8-connector |
