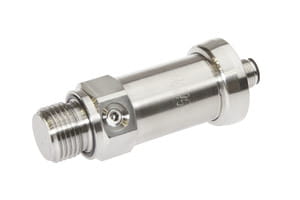

DT98C685, Pressure sensor 100bar,G1/2A,flush8-32VDC,a4-20mA,2-conductor,M12-plug4pol ,IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
Pressure sensors are suitable for measuring different media with high accuracy. They are available with switching output and/or analog output. Using PC software, the measured values can be recorded depending on the device type. These sensors can be used in all areas of e.g. pneumatic and hydraulic applications.
Circuit diagram: Link
Colours: 1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black) Functions: 1 = L+, 2 = 4-20mA/L-, 3 = n.c., 4 = n.c.
Files to download:
Technical data
| pressure connection | G1/2 inch A |
| Measuring range | 0 - 100 bar |
| connection | plug-in connection M12 |
| IP system of protection | IP67 |
| type of analog output | 4 mA ... 20 mA |
| measurement method | relative |
| for hydraulic applications | yes |
| front-flush membrane | yes |
| cip compatible | yes |
| compatible with foodstuff | yes |
| pressure transmitter | yes |
