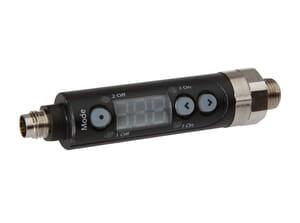

DW164600, Pressure sensor -1bis0bar,G1/8,LED10-30V DC,2x250mA,pnp,M8-plug4pol ,IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
Pressure sensors are suitable for measuring different media with high accuracy. They are available with switching output and/or analog output. Using PC software, the measured values can be recorded depending on the device type. These sensors can be used in all areas of e.g. pneumatic and hydraulic applications.
Circuit diagram: Link
Colours: A: 1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black) B: 1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black) Functions: A: 1 = L+, 2 = PNP NO, 3 = L-, 4 = PNP NO B: 1 = L+, 2 = PNP NC, 3 = L-, 4 = PNP NC
Files to download:
Technical data
| pressure connection | G1/8 inch A / M5 inside |
| Measuring range | -1 - 0 bar |
| connection | plug-in connection M8 |
| output function | Normally closed contact/normally open contact |
| IP system of protection | IP65 |
| ampacity | 250mA |
| measurement method | relative |
| suitable as monitor | yes |
| adjustable hysteresis | yes |
| IO-link compatible | yes |
| with display | yes |
| for pneumatic applications | yes |
| Type | Pressure sensors |
