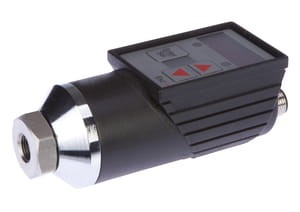

DW363110, Pressure sensor -1bis0bar,G1/812-32VDC,analog U/I,d1A,M12-plug4pol ,IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
Pressure sensors are suitable for measuring different media with high accuracy. They are available with switching output and/or analog output. Using PC software, the measured values can be recorded depending on the device type. These sensors can be used in all areas of e.g. pneumatic and hydraulic applications.
Circuit diagram: Link
Colours: 1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black) Functions: 1 = L+, 2 = PNP NO/NC, alarm, analog, 3 = L-, 4 = PNP NO/NC
Files to download:
Technical data
| pressure connection | G1/8 inch |
| Measuring range | -1 - 0 bar |
| connection | plug-in connection M12 |
| output function | Normally closed contact/normally open contact |
| IP system of protection | IP65 |
| type of analog output | 0 V ... 10 V / 4 mA ... 20 mA / 0 … 20 mA |
| ampacity | 1000mA |
| measurement method | relative |
| for hydraulic applications | yes |
| suitable as monitor | yes |
| adjustable hysteresis | yes |
| with display | yes |
| for pneumatic applications | yes |
| programmable via software | yes |
