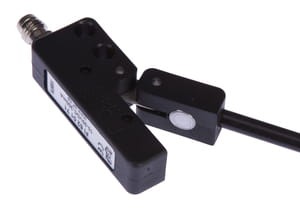

FI520171, Filling level sensor,inductive 52x21x14/200lg, 10-30V DC,200mA,Joint VA,M8-Plug, IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
Filling level and level sensors operate according to different measuring principles. The selection of the sensor depends on the medium to be detected and the ambient conditions. The material flow in a vibratory bowl can be excellently queried with inductive filling level sensors whose pendulum is moved by the material in the pot. The detection of liquid or solid media is, for instance, possible with capacitive filling level sensor technology. These work according to the principle of the condensator, the medium changes the dielectricity between two electrodes. The resulting change is converted into a digital output signal. A further alternative for the detection of filling levels of conductive media is provided by conductive filling level relays. The resistance between reference and measuring electrode is determined. If a set threshold is exceeded, a relay output switches.
Circuit diagram: Link
Colours: 1 = BN (brown), 3 = BU (blue), 4 = BK (black) Functions: 1 = L+, 3 = L-, 4 = PNP NO
Files to download:
Technical data
| version | inductive |
| housing material | polyamide |
| dimensions | 52x21x14mm |
| output | PNP |
| output function | normally open contact |
| connection | connector M8 |
| ambient temperature | 0 - 50°C |
| vibratory feeder | yes |
