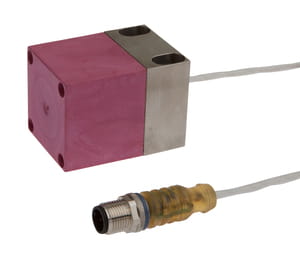

IN40E173,Inductive sensor,high temp230° 40x40x55, 10-30V DC,100mA,pnp,no,Sn:20/20mTfl-Kbl,M12-plug, IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
Inductive proximity switches are contact-free sensors. They detect all conductive metals, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or frontally. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. dampers), counting (e.g. nuts /bolts), speed detection (e.g. for cog wheels), on conveyor systems (e.g. hose feedings) or distance measurements (e.g. press-in checking) of metallic objects.
Circuit diagram: Link
Colours: 1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black) Functions: 1 = L+, 2 = n. c., 3 = L-, 4 = PNP NO
Files to download:
Technical data
| design | cuboid |
| length | 55mm |
| ring height | 40mm |
| ring width | 40mm |
| housing material | stainless steel 1.4305 |
| IP system of protection | IP50 |
| sensing range | 20mm |
| mounting | non-flush |
| connection | cable connector M12 |
| output | PNP |
| output function | normally open contact |
| ampacity | 100mA |
| voltage type | DC |
| ambient temperature | 0 - 230°C |
