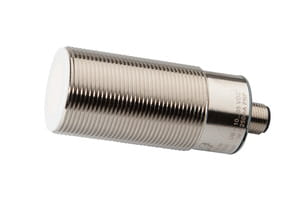

KB320420, Capacitive sensor M32x1,5/82long, 10-35V DC, 250mA, Sn:0,5-30, M12-Plug 4pol, IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
Capacitive proximity switches are contact-free sensors. They detect metallic and non-metallic objects, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material, its dimensions and the response sensitivity, which is set via a potentiometer. The vibration-resistant sensors can be approached laterally or frontally. Capacitive proximity switches are used for presence detection (e.g. sealing detection), positioning (e.g. PET bottles), counting (e.g. plastic caps), level detection (e.g. lubricant) or distance measurements (e.g. thickness measurement) of solid and liquid materials.
Circuit diagram: Link
Colours: 1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black) Functions: 1 = L+, 2 = PNP NC, 3 = L-, 4 = PNP NO
Files to download:
Technical data
| design | cylinder screw-thread |
| dimensions | M32x1.5 |
| housing material | metal |
| IP system of protection | IP67 |
| lenght | 82mm |
| range | 0.5 - 30mm |
| mouting | flush |
| connection | connector M12 |
| output | PNP |
| output function | exclusive-OR |
| ampacity | 250mA |
| voltage type | DC |
| ambient temperature | -25 - 70°C |
| level inquiry | yes |
