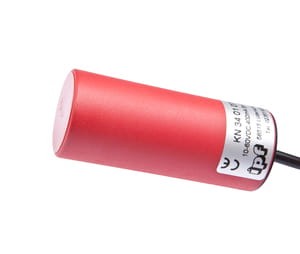

KN340107, Capacitive sensor 34round, 81long, clamp, 10-60V DC, 400mA, Sn:30, 2m cable, IPF ELECTRONIC

Availability: out of stock

Price: €229.96

excl. 23% TAX, excl. shipping costs

Regular price:

229.96

The lowest price during 30 days prior to the reduction:

quantity pcs

product unavailable

add to wish list

Rating:

Vendor:

Product code: KN340107

Description

Capacitive proximity switches are contact-free sensors. They detect metallic and non-metallic objects, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material, its dimensions and the response sensitivity, which is set via a potentiometer. The vibration-resistant sensors can be approached laterally or frontally. Capacitive proximity switches are used for presence detection (e.g. sealing detection), positioning (e.g. PET bottles), counting (e.g. plastic caps), level detection (e.g. lubricant) or distance measurements (e.g. thickness measurement) of solid and liquid materials.

Circuit diagram: Link

Colours: 1 = BN (brown), 3 = BU (blue), 4 = BK (black) Functions: 1 = L+, 3 = L-, 4 = PNP NO

Files to download:

Technical data

design	cylinder plain
dimensions	Ø34mm
housing material	PBT
IP system of protection	IP67
lenght	81mm
range	6 - 30mm
mouting	non-flush
connection	cable
output	PNP
output function	normally open contact
ampacity	400mA
voltage type	DC
ambient temperature	-25 - 70°C
