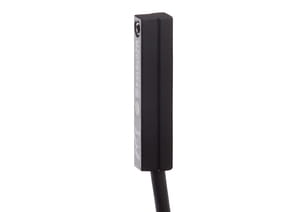

MZ0701F4 sensor magn,zylinder 6,2x6,3x30 10-30V DC,150mA,M8-Kabelstecker600mm IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
For many tasks in the field of automation technology, it is necessary to recognize the motional processes in pneumatic and hydraulic cylinders and to detect the position of the piston with precision. For this, magnetic cylinder sensors are used.
Circuit diagram: Link
Colours: 1 = BN (brown), 3 = BU (blue), 4 = BK (black) Functions: 1 = L+, 3 = L-, 4 = PNP NO
Files to download:
Technical data
| type of rounded groove | not applicable |
| sensor surface position | center of the device |
| mounting cylinder groove | lateral |
| housing material | zinc die-cast |
| connection | cable connector m8 |
| ampacity | 150mA |
| setting via teach-in | no |
| ambient temperature | -25 - 75*C |
| diameter | 6.2mm |
| output | PNP |
| hysteresis | 1mm |
| number of switching outputs | not applicable |
