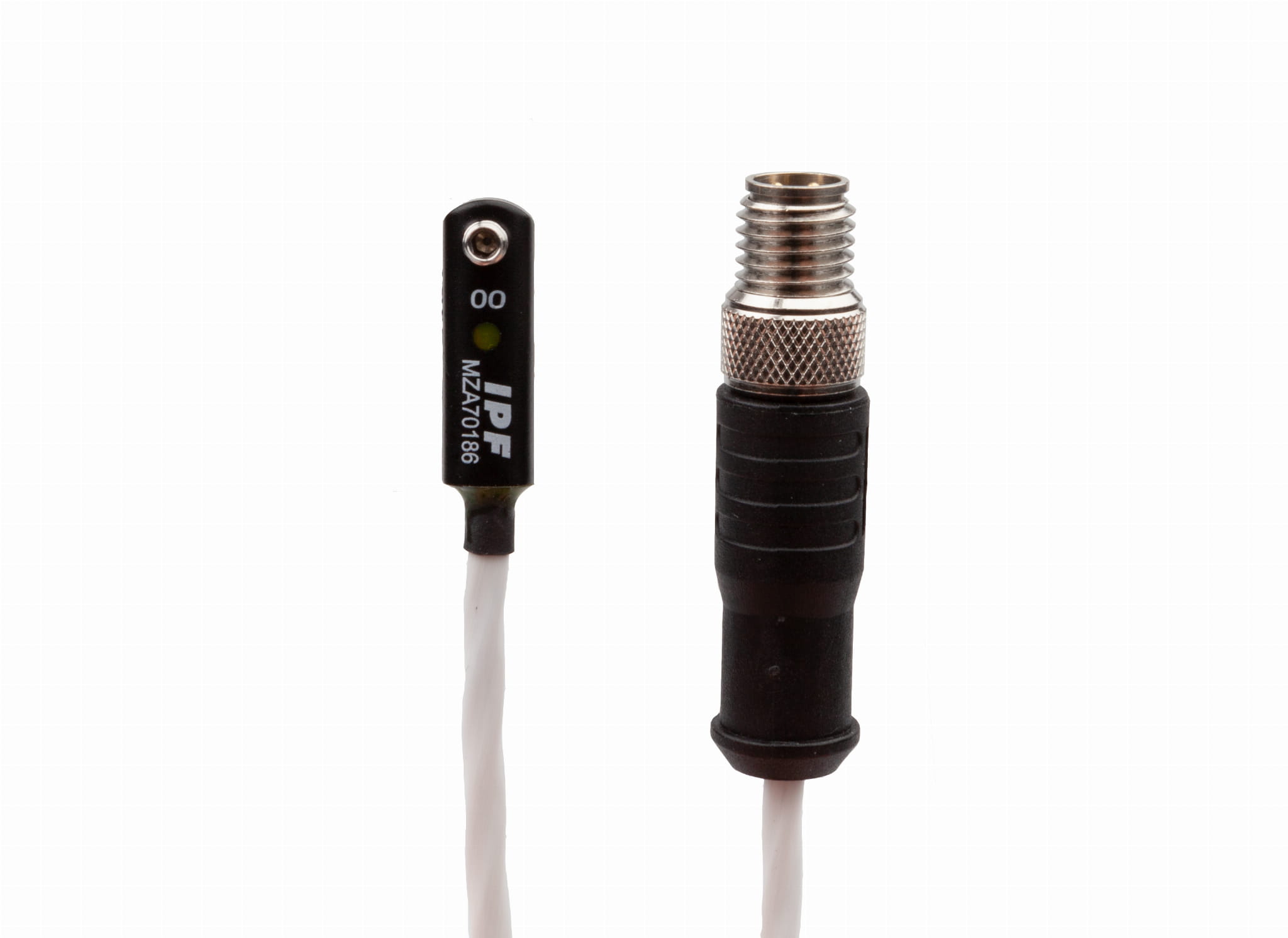

MZA70186, sensor - magnetic,cylinder 6,15x4,3x19 10-30V DC,150mA,300mmTeflcbl,M8plug
Regular price:
product unavailable
add to wish list
0
Description
For many tasks in the field of automation technology, it is necessary to recognize the motional processes in pneumatic and hydraulic cylinders and to detect the position of the piston with precision. For this, - magneticetic cylinder sensors are used.
Files to download:
Technical data
| design | cuboid |
| number of pins | 3 |
| type of rounded groove | With T-groove |
| IP system of protection | IP67 |
| sensor surface position | center of the device |
| mounting cylinder groove | from the top |
| housing material | zinc die-cast |
| connection | cable connector M8 |
| ampacity | 150mA |
| ambient temperature | -25 - 70*C |
| output | PNP |
| number of switching outputs | 1 |
