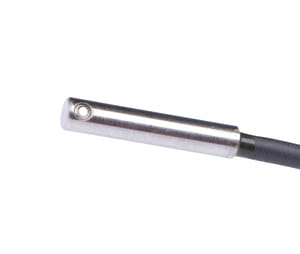

MZR40129 sensor magn,zylinder 4rd/20,5lg,VA 10-30V DC,150mA,M12-Kabelstecker300mm IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
For many tasks in the field of automation technology, it is necessary to recognize the motional processes in pneumatic and hydraulic cylinders and to detect the position of the piston with precision. For this, magnetic cylinder sensors are used.
Circuit diagram: Link
Colours: 1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black) Functions: 1 = L+, 2 = n. c., 3 = L-, 4 = PNP NO
Files to download:
Technical data
| type of rounded groove | 4.1mm rounded groove |
| sensor surface position | border area of the device |
| mounting cylinder groove | lateral |
| housing material | stainless steel 1.4305 |
| connection | cable connector m12 |
| ampacity | 150mA |
| setting via teach-in | no |
| ambient temperature | -25 - 70*C |
| diameter | Ø4mm |
| output | PNP |
| hysteresis | 1mm |
| number of switching outputs | not applicable |
