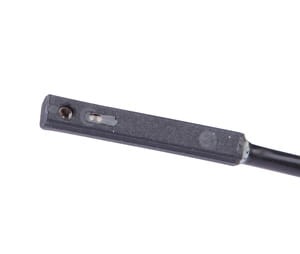

MZR40720, Magnetic sensor,cylinder 3,7x3,1x22,teach, 10-30V DC,2x25mA,M12-calbe plug 4polig 280mm, IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
For many tasks in the field of automation technology, it is necessary to recognize the motional processes in pneumatic and hydraulic cylinders and to detect the position of the piston with precision. For this, magnetic cylinder sensors are used.
Circuit diagram: Link
Colours: 1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black) Functions: 1 = L+, 2 = n. c., 3 = L-, 4 = PNP NO
Files to download:
