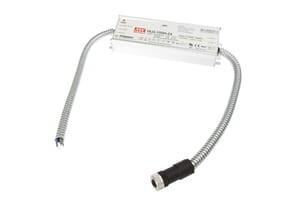

NG98E139, Power supply,clocked,stabilized, 90-295V AC,24V DC,4A, IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
Pulsed power supplies are used to supply electrical systems or system parts with a stabilized DC voltage. Due to the lower copper losses, pulsed power supplies in the lower power range are considerably more efficient than power transformers. Furthermore, they are more compact and are lighter weight than conventional, linear regulated power supplies, which contain a heavy transformer with iron core and cause additional losses in the linear regulator.
Circuit diagram: Link
Colours: A: BN (brown), BU (blue), GN/YE (green/yellow) B: BK (black), RD (red) Functions: A: BN = L+, BU = L-, GN/YE = PE B: BK = L+, RD = L-
Files to download:
Technical data
| voltage type of supply voltage | AC/DC |
| input voltage | 95 - 295V |
| current load | 4A |
| IP system of protection | IP67 |
| output voltage | 18 - 24V DC |
| nominal power | 96W |
