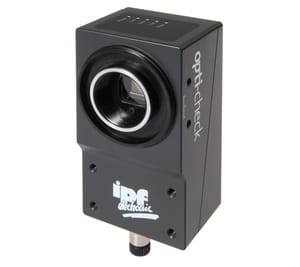

OC539821, camera sensor, camera 53x113x50, VS, Color, 18-30V DC, 5 inputs, 5outputs, edition:1, 2MP, M12-Stckr12/4pol, IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
Camera sensors are used to simultaneously check various properties of objects (e.g., completeness, dimensional accuracy, position, damages, labeling). This takes place independent of the component position virtually in real time. Camera sensors are image processing systems that combine image sensor and image processing computer with image processing software in a metal housing. Depending on the version, lens and illumination unit are also integrated in the housing or must be additionally mounted. The camera sensors are set using an intuitive software program. On the device, object-specific check programs can be stored that contain the respective feature checks. These programs can be activated depending on the object that is to be inspected. The rugged housing design makes possible use under harsh environmental conditions.
Circuit diagram: Link
Colours: A: 1 = BN (brown), 2 = BU (blue), 3 = WH (white), 4 = GN (green), 5 = PK (pink), 6 = YE (yellow), 7 = BK (black), 8 = GY (gray), 9 = RD (red), 10 = VT (violet), 11 = GY/PK (gray/pink), 12 = RD/BU (red/blue) B: 1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black) Functions: A: 1 = L+, 2 = L-, 3 = trigger, 4 = out 1, 5 = In 2, 6 = out 2, 7 = out 3, 8 = In 3, 9 = out 4/ RS485, 10 = In 4, 11 = in 5, 12 = out 5/RS485 B: 1 = TD+, 2 = TD-, 3 = RX+, 4 = RX-
Files to download:
Technical data
| resolution | 1280x960 |
| testing and sorting | yes |
| dimensional stability | yes |
| evaluation regardless position | yes |
| pick and place | yes |
| interchangeable lens | yes |
| flash contr. for ext. illumination | yes |
| with ethernet | yes |
