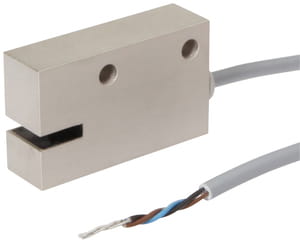

OG032280, Optical sensor, fork/3 41x25x12, 4,5-30V DC,100mA,2m Kabel, IPF ELECTRONIC
Availability:
available on order
Dispatched within:
determined individually
Price:
€187.66
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
OG032280
Description
Special design of through-beam sensor. Transmitter and receiver are located in the fork or angular limbs and are perfectly aligned to each other.
Circuit diagram: Link
Colours: BN (brown), BU (blue), BK (black) Functions: BN = L+, BU = L-, BK = PNP NC
Files to download:
Technical data
| design | furcate |
| light color | infrared light |
| laser protection class | none |
| fork/angle width | 3mm |
| fork depth | 10mm |
| light beam form | point |
| sensor length | 12mm |
| sensor height | 25mm |
| sensor width | 41mm |
| resolution | 800µm |
| output | PNP |
| output function | light switching |
| connection | cable |
| housing material | brass |
| ampacity | 100mA |
