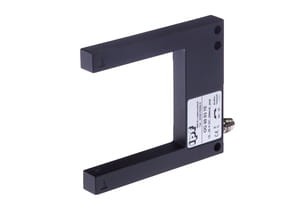

OG50037E, Optical sensor, fork/50,teach 80x70x10, 10-35V DC,200mA,M8- plug 4pol, clocked, IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
1
Description
Special design of through-beam sensor. Transmitter and receiver are located in the fork or angular limbs and are perfectly aligned to each other.
Circuit diagram: Link
Colours: A: 1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black) B: 1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black) Functions: A: 1 = L+, 2 = teach-In, 3 = L-, 4 = PNP NO B: 1 = L+, 2 = teach-In, 3 = L-, 4 = PNP NC
Files to download:
Technical data
| design | furcate |
| light color | polarity free red light |
| laser protection class | none |
| fork/angle width | 50mm |
| fork depth | 55mm |
| light beam form | point |
| sensor length | 10mm |
| sensor height | 70mm |
| sensor width | 80mm |
| resolution | 300µm |
| output | PNP |
| output function | light-/dark-on mode |
| connection | connector M8 |
| housing material | zinc die-cast |
| ampacity | 200mA |
