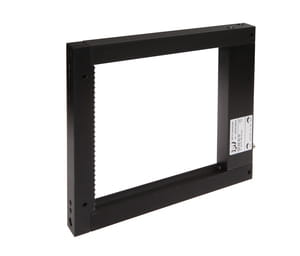

OHKE0370, Optical sensor,rahmen/150x142 203x190x20, 18-35V DC,200mA,M8- plug,stat/dyn, IPF ELECTRONIC

Availability: permanently unavailable
Delivery: The price does not include any possible payment costs check the delivery methods
Price: €1,296.50
excl. 23% TAX, excl. shipping costs

Regular price:

1296.50
The lowest price during 30 days prior to the reduction:
quantity pcs

product unavailable

add to wish list
Rating: 0
Vendor: IPF Electronic
Product code: OHKE0370

Description

Frame and ring light barriers operate according to the principle of a through-beam sensor. Within the housing there is a variety of transmitter and receiver elements that form a light curtain and thus detect various objects. Application examples for these systems are ejection control of presses, presence monitoring or length measurements of wires or tubes.

Circuit diagram: Link

Colours: A: 1 = BN (brown), 3 = BU (blue), 4 = BK (black) B: 1 = BN (brown), 3 = BU (blue), 4 = BK (black) Functions: A: 1 = L+, 3 = L-, 4 = PNP NO B: 1 = L+, 3 = L-, 4 = PNP NC

Product discontinued. Replacement available OHKE0570

Files to download:

Technical data

type one-piece
design frame-shaped
sensor width 203mm
sensor height 190mm
sensor length 20mm
sensor diameter not applicable
housing material aluminum
width of active zone 150mm
height of active zone 142mm
connection connector M8
min. object size 5mm
output PNP
output function normally closed contact/normally open contact
with compressed air connection yes
with mechanical impact protection yes
