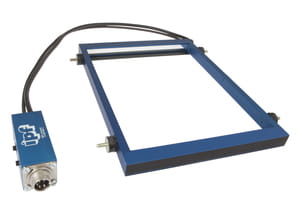

OHSI0316, Optical sensor,rahmen200x158 230x174x15, 12-32V DC,200mA,Ausg dyn,M16- plug5pol, IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
Frame and ring light barriers operate according to the principle of a through-beam sensor. Within the housing there is a variety of transmitter and receiver elements that form a light curtain and thus detect various objects. Application examples for these systems are ejection control of presses, presence monitoring or length measurements of wires or tubes.
Circuit diagram: Link
Colours: A: 1 = BU (blue), 2 = BR (brown), 3 = WH (white), 4 = BK (black), 5 = RD (red) B: 1 = BU (blue), 2 = BN (brown), 3 = WH (white), 4 = BK (black), 5 = RD (red) Functions: A: 1 = L-, 2 = L+, 3 = NPN NO, 4 = PNP NO, 5 = 0-10V B: 1 = L-, 2 = L+, 3 = PNP NC, 4 = NPN NC, 5 = 0-10V
Files to download:
Technical data
| type | not applicable |
| design | frame-shaped |
| sensor width | 230mm |
| sensor height | 174mm |
| sensor length | 15mm |
| sensor diameter | not applicable |
| housing material | metal |
| width of active zone | 200mm |
| height of active zone | 158mm |
| connection | other |
| min. object size | 0.5mm |
| output | PNP/NPN |
| output function | normally closed contact/normally open contact |
| with mechanical impact protection | yes |
