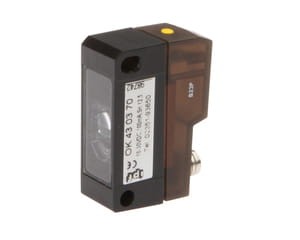

OK430370, Optical sensor,contrast 14,8x43x32,5,teach, 18-30V DC,100mA,Sn:12,5/M8- Plug 4pol, IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
Contrast scanners are capable to distinguish the the visual differences (e.g. reflectivity, brightness differences) between adjacent areas. In general, the devices project a light spot on an object's surface and analyze the reflected light. Fiber optic amplifier versions can be used in addition to the incident light mode also in the transmitted light mode. Contrast scanners are versatile. They can be used, among other things, for position control of printing or color marks, distinction of brightness variations or in the intensity control of luminous objects (like LEDs, displays etc.).
Files to download:
Technical data
| design | cuboid |
| width-cuboid | 14.8mm |
| height-cuboid | 43mm |
| length | 31mm |
| light color | white light |
| housing material | plastic |
| operating range | 13mm |
| connection | connector M8 |
| output | PNP/NPN |
| output function | not applicable |
| IP system of protection | IP67 |
| linear light beam | yes |
