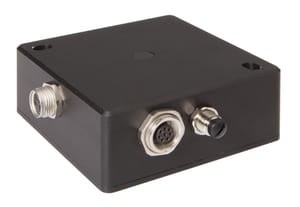

OKSI0289, Optical sensor,contrast 65x65x26,IR,receiver, 24V DC,100mA,2xPP,0-10V/4-20mA, Socket, IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
Contrast scanners are capable to distinguish the the visual differences (e.g. reflectivity, brightness differences) between adjacent areas. In general, the devices project a light spot on an object's surface and analyze the reflected light. Fiber optic amplifier versions can be used in addition to the incident light mode also in the transmitted light mode. Contrast scanners are versatile. They can be used, among other things, for position control of printing or color marks, distinction of brightness variations or in the intensity control of luminous objects (like LEDs, displays etc.).
Files to download:
Technical data
| design | cuboid |
| width-cuboid | 65mm |
| height-cuboid | 26mm |
| length | 65mm |
| housing material | aluminum |
| connection | plug-in connection |
| output | PNP/NPN |
| output function | 0 V ... 10 V - 4 mA ... 20 mA |
| IP system of protection | IP64 |
| analogue output 0 V ... 10 V | yes |
| analogue output 4 mA ... 20 mA | yes |
| programmable via software | yes |
| turbidity control | yes |
| transmitted light applications | yes |
| counting tasks | yes |
| analogue output -10 V ... +10 V | yes |
