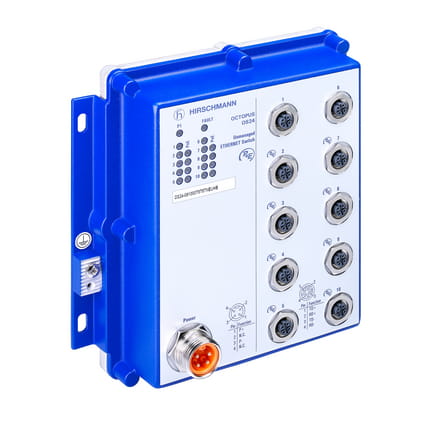

OS24-081000T5T5TNEUHB, 10 ports in total uplink ports: 10/100 BASE-TX, M12 "D"-coding, 4-pole 10 x 10/100 BASE-TX, thereof 8 x 10/100 BASE-TX PoE (phantom power) TP-cable, auto-crossing, auto-negotiation, auto-polarity., HIRSCHMANN
Availability:
recalled
Price:
€1,937.04
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
OS24-081000T5T5TNEUHB
Description
We inform you that the production of this devices has been discontinued.
OCTOPUS 8TX-EEC-PoE is availabale as an alternative.
Unmanaged IP 65 / IP 67 switch in accordance with IEEE 802.3, store-and-forward-switching, power sourcing equipment in accordance with IEEE 802.3at (PoE+ inline power), electrical Fast-Ethernet (10/100 MBit/s) M12-ports
Files to download:
Technical data
| Port 1 & 2 | Twisted Pair FE M12, 4-Pin "D"-coded |
| Port 3 & 4 | Twisted Pair FE M12, 4-Pin "D"-coded |
| Ports (overall) | 8 x 10/100 Base-TX PoE (phantom power) and 2 x 10/100 Base-TX; M12 D-coded; 4-polig; TP-cable |
| IP system of protection | IP54 |
| Dimensions | 184 x 189 x 70 mm |
| Design | Fast Ethernet Ports w. PoE/PoE+ |
| Temperature range | -40 ºC - 70 ºC |
| PoE ports | 8 x Fast Ethernet PoE Ports |
| Power supply | DC 72 V - 110 V |
| Fast Ethernet ports | 10 x Fast Ethernet Ports |
| Approvals | FCC 47 CFR Part 15 Class A;EN 55022 Class A;cUL 60950-1 (pending;EN 50155 |
