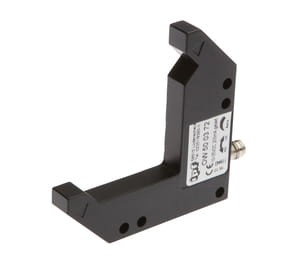

OW500372, Optical sensor,winkel/50 75x75x10, red, 10-35V DC,200mA,M8- plug, clocked, IPF ELECTRONIC

Availability: recalled

Dispatched within: determined individually

Delivery: check the delivery methods

Price: €324.12

excl. 23% TAX, excl. shipping costs

Regular price:

324.12

The lowest price during 30 days prior to the reduction:

quantity pcs

product unavailable

add to wish list

Rating:

Vendor:

Product code: OW500372

Description

Special design of through-beam sensor. Transmitter and receiver are located in the fork or angular limbs and are perfectly aligned to each other.

Circuit diagram: Link

Colours: A: 1 = BN (brown), 3 = BU (blue), 4 = BK (black) B: 1 = BN (brown), 3 = BU (blue), 4 = BK (black) Functions: A: 1 = L+, 3 = L-, 4 = PNP NO B: 1 = L+, 3 = L-, 4 = PNP NC

Files to download:

Technical data

design	angular shaped
light color	polarity free red light
laser protection class	none
fork/angle width	60mm
light beam form	point
sensor length	10mm
sensor height	75mm
sensor width	75mm
resolution	500µm
output	PNP
output function	light-/dark-on mode
connection	connector M8
housing material	zinc die-cast
ampacity	200mA
setting procedure	manual adjustment
