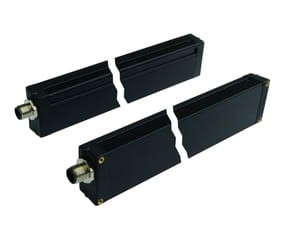

OY410522, Optical sensor,light barrier2 40x100x20,5/field75,Poti, 24V DC,80mA,Sn:80-800,M12-plug4pol, IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
The multi-function light barriers are through-beam sensors where multiple beams are integrated. In case of interruption of only one beam, the switching output of the receiver changes its state. The devices are used where standard through-beam sensors with only one beam are not sufficient. There are devices with beam spacing of 20, 40, 60 or 120mm and different heights available. An integrated fuzzy logic controls the transmitting power automatically.
Circuit diagram: Link
Colours: A: 1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black) B: 1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black) Functions: A: 1 = L+, 2 = n. c., 3 = L-, 4 = n. c. B: 1 = L+, 2 = PNP NO / NPN NC, 3 = L-, 4 = PNP NC / NPN NO
Files to download:
Technical data
| resolution | 2mm |
| field height | 75mm |
| operating range | 0.8m |
| output | PNP/NPN |
| output function | Exclusive-OR |
| ampacity | 80mA |
