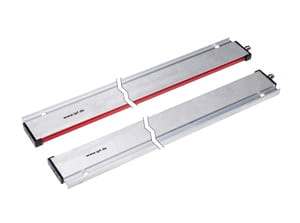

OYL41970, Optical sensor,light barrier40 9x920x40,75,field720, 10-30VDC,100mA,Rel,Sn:5m,M8-plug 4p,flap, IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
The multi-function light barriers are through-beam sensors where multiple beams are integrated. In case of interruption of only one beam, the switching output of the receiver changes its state. The devices are used where standard through-beam sensors with only one beam are not sufficient. There are devices with beam spacing of 20, 40, 60 or 120mm and different heights available. An integrated fuzzy logic controls the transmitting power automatically.
Circuit diagram: Link
Colours: A: 1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black) B: 1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black) Functions: A: 1 = L+, 2 = test, 3 = L-, 4 = n. c. B: 1 = L+, 2 = relay, 3 = L-, 4 = relay
Files to download:
Technical data
| ampacity | 100mA |
| with bracket mounting | yes |
| resolution | 40mm |
| field height | 720mm |
| operating range | 5m |
| output | relay contact |
| output function | Normally open/normally closed |
