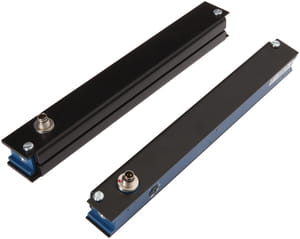

OYSI0275, Optical sensor,grid 20x226x25,(10x200),10kHz, 12-32VDC,200mA,pnp,nc,Sn:800, plug, IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
The multi-function light barriers are through-beam sensors where multiple beams are integrated. In case of interruption of only one beam, the switching output of the receiver changes its state. The devices are used where standard through-beam sensors with only one beam are not sufficient. There are devices with beam spacing of 20, 40, 60 or 120mm and different heights available. An integrated fuzzy logic controls the transmitting power automatically.
Files to download:
Technical data
| type | not applicable |
| design | not applicable |
| sensor width | 20mm |
| sensor height | 226mm |
| sensor length | 25mm |
| sensor diameter | not applicable |
| housing material | aluminum |
| connection | connector M9 |
| output | PNP/NPN |
| output function | normally closed contact/normally open contact |
| large operating range | yes |
| variable operating range | yes |
