PGK0014F, sensor laser, fork,row/100 160x150x24,Fldh.16mm, 15-30V DC,2xPP,a4-20mA,Kl2,Aufl 16µm, sockets, IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description

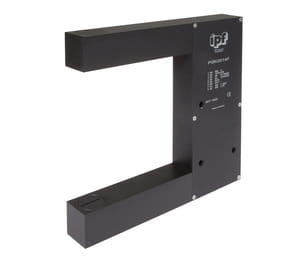

Special design of through-beam sensor. Transmitter and receiver are located in the fork or angular limbs and are perfectly aligned to each other.
Circuit diagram: Link
Colours: A: 1 = WH (white), 2 = BN (brown), 3 = GN (green), 4 = YE (yellow), 5 = GY (gray), 6 = PK (pink), 7 = BU (blue), 8 = RD (red) Functions: A: 1 = L-, 2 = L+, 3 = in 0 (ext. trigger), 4 = in 1 (teach/reset), 5 = out 0, 6 = out 1, 7 = GND, 8 = 0-10V B: 1 = L+, 2 = L-, 3 = RxD, 4 = TxD
Files to download:
Technical data
| design | furcate |
| light color | infrared light clocked |
| laser protection class | class 1 |
| fork/angle width | 100mm |
| fork depth | 100mm |
| sensor length | 24mm |
| sensor height | 150mm |
| sensor width | 160mm |
| resolution | 8µm |
| output | PNP/NPN |
| output function | light-/dark-on mode |
| connection | plug-in connection |
| housing material | aluminum |
| ampacity | 100mA |
| meas. of light beam coverage | yes |
| web edge guide control | yes |
