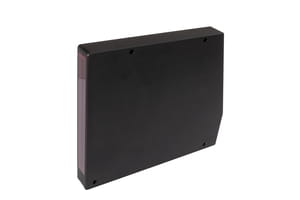

PSK00046, sensor - optical,transmitter,dim 20x143x170,Kl1 24V DC±10%,Sn:2000

Availability: available on order

Dispatched within: determined individually

Delivery: check the delivery methods

Price: €4,213.56

excl. 23% TAX, excl. shipping costs

Regular price:

4213.56

The lowest price during 30 days prior to the reduction:

quantity pcs

product unavailable

add to wish list

Rating:

Vendor:

Product code: PSK00046

Description

Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.

Files to download:

Technical data

Sensor width	170mm
No-load current	200mA
Laser class	1
Sensor height	145mm
measuring range	2m
Wavelength of the sensor	670nm
Sensor length	30mm
Connection to amplifier	no
Filter	Interference filter
Storage temperature	-20 - 85*C
Laser power	0.4mW
Aperture length	98mm
Field height	98mm
Type of communication interface, transmitter + receiver	connector M9
Line sensor	yes
number of pins	4
number of pins of the communication interface, transmitter + receiver	4
Size	230mm x 61.0mm x 290mm
Type of input voltage	DC
Type of plug-in contact, communication interface	Female (socket)
IP system of protection	IP54
Operating voltage	21.6 - 26.4V
Scope of delivery of the one-way system	Transmitter
design	cuboid
light color	Laser diode, red light
Laser protection class	Class 1
housing material	aluminum,ambient temperature
connection	connector M9
Light beam form	Line
Setting procedure	Parameterization
voltage type	DC
