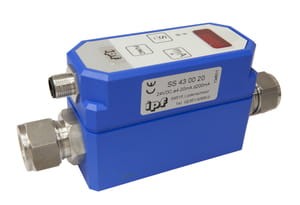

SS430020, Flow sensor,inl 100x43x70,LED, 24VDC,d200mA,a4-20mA/1-10l/min,M12St4p, IPF ELECTRONIC

Availability: available on order

Dispatched within: determined individually

Delivery: check the delivery methods

Price: €738.78

excl. 23% TAX, excl. shipping costs

Regular price:

738.78

The lowest price during 30 days prior to the reduction:

quantity pcs

product unavailable

add to wish list

Rating:

Vendor:

Product code: SS430020

Description

The function of the flow sensor is based on the calorimetric principle. The probe is heated up from the inside a few degrees Celsius in relation to the flow medium, in which it protrudes. When the medium flows, the heat generated in the probe is dissipated through the medium. The temperature within the sensor is measured and compared with the likewise measured medium temperature. From the obtained temperature difference the flow state of each medium can be derived. These sensors are applied in areas such as monitoring of cooling systems, ventilation systems, pump dry running by checking the presence of liquid or gas flows.

Files to download:

Technical data

Proces connection	Cutting ring fitting for OD 10mm
Measuring range	1 - 10
Type of electrical connection	Plug-in connection M12
Output	PNP
Output function	Normally closed contact/normally open contact
Ampacity	200.00mA
Flow measurment	no
For hydraulic applications	no
For pneumatic applications	no
Air conditioning / ventilation	no
