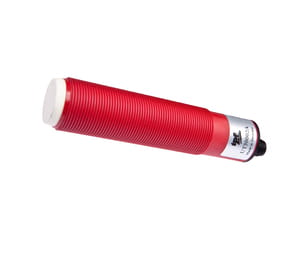

UT30002A, Ultrasonic sensor M30x1,5/141long,teach, 15-30V DC,0-10V,Sn:300-3500,M12- Plug 5p, IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
Ultrasonic sensors are non-contact and wear-free position switches which can also be used under rough environmental conditions. A key advantage of these devices lies in the fact that the material and the surface characteristics of the objects to be detected can be almost anything. Solids, liquids, grainy materials and powdery materials can be identified without the shape or the color of the object having any influence to the measured result. In addition, the ability to detect transparent materials such as films and fluids is of particular importance. The shape and color of the objects do not influence the result of the detection. The capability to detect transparent films or liquids is also of special importance. Ultrasonic sensors are used for distance measurement (e.g. detection of diameters, loop control), for fill level detection (e.g. silo detection), for positioning and presence detection (e.g. glass pane positioning, film tear check, glass bottle detection)
Files to download:
Technical data
| design | cylinder screw-thread |
| IO-Link compatible | yes |
| length | 141mm |
| functional principle | diffuse reflection sensor |
| housing material | plastic |
| operating range | 300 - 3500mm |
| connection | connector M12 |
| voltage type | DC |
| IP system of protection | IP67 |
| setting procedure | teach-in |
| angle of beam spread | 8° |
| thread size-screw | M30 |
| thread pitch-screw | 1.5mm |
| type of analog output | 0 V ... 10 V |
