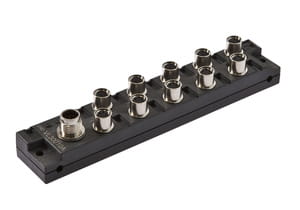

VL30010A, logic module,distributor and/oder,10subject,M8, 10-30V DC,200mA,M12- Plug 12polig, IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
Connecting digital signals directly at the machine can contribute to significant cost and effort minimization. A classic application is the linking of different signals directly in the field. Thus, it is possible to avoid long line paths of many individual devices, which significantly reduces the wiring effort and the need for control inputs. All input signals on the logic modules are visualized by integrated LED and are electrically decoupled from each other. In this way, influences from one device to the other are reliably prevented. The outputs of the modules are overload-proof and the upcoming signal is also indicated by an LED. In addition to logical input signal connections such as AND and OR, versions with signal change control are also available. The ipf logic modules are available for DIN rail mounting or as field modules. Therefor and because of the robust housing, which is characterized by a high degree of protection against the penetration of dust and water, our devices can be used in all areas of machines, equipment and tools.
Files to download:
Technical data
| operating voltage | 10 - 30V |
| linking logic | AND/OR |
| number of inputs per logic unit | 10 |
| number of logic units | 1 |
| IP system of protection | IP67 |
| input versions | Connector M8 |
| output versions | M12-connector |
| With LED display | yes |
