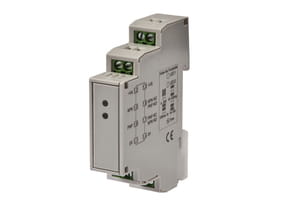

VY850002, signal reversal sensorufe 17,5x85x65, 12-30V DC,300mA,Zeitst,dyn,jam, IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
Our multi-function time relays / pulse stretchers can be considered as real alternatives when it comes to solutions for minor set control technology problems. The input signals, for example, can be switch-on or off delayed after a preset time. In order to be able to reduce the storage, multi-function relays can be used that provide, in addition to the already mentioned functions, operating modes like time-programming, pulse-forming or clocking. Besides, there is also star / delta change-over for load-contactors integrated in the motor start control. Reversing the switching logic or the polarity is possible with our fast signal inverters / impulse stretchers. These are characterized by extremely short response times and high switching frequencies. As an input circuit for a PLC these devices are perfect to record short signal or level changes.
Files to download:
Technical data
| operating voltage | 12 - 30V |
| time range | 0.01 - 10s |
| IP system of protection | IP40 |
| output | PNP/NPN |
| for DIN-rail mounting | yes |
| off-delay | yes |
| with inversion | yes |
