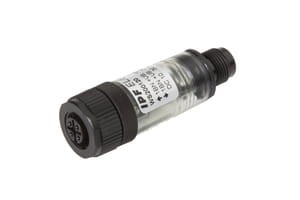

WS200120, Zerospeed monitor 0,015-1000Hz/20round,60long, 10-30VDC,400mA,pnp,M12Dose/Stckr4p, IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
The monitoring of rotation speed or rotating movements is necessary in many applications to ensure the proper operation of the plant. Our rotation- and zero speed monitors operate according to different operating principles: 1. Monitoring of pulses of a transducer via a current transfomer, 2.Frequency measurement of the phase current Our devices feature, depending on the type, a wide variety of functions. For a further evaluation in a higher-level control, the results are i.e. outputted as easy relay contact (over-/ underspeed) or as analog output signal resolved to the set rotation speed range.
Circuit diagram: Link
Colours: A: 1 = BN (brown), 3 = BU (blue), 4 = BK (black) B: 1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black) Functions: A: 1 = L+, 3 = L-, 4 = PNP NO B: 1 = L+, 2 = teach-In, 3 = L-, 4 = PNP NO
Files to download:
Technical data
| operating voltage | 30 - 10V |
| monitoring range | 0.02 - 1000Hz |
