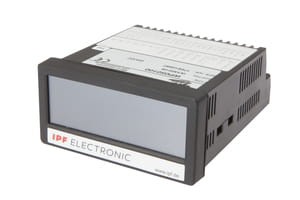

WY050100, Impuls monitor,display,touch 96x48x116,LCD, 24VDC,250kHz,8digit,4primaries,analog, IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
The monitoring of rotation speed or rotating movements is necessary in many applications to ensure the proper operation of the plant. Our rotation- and zero speed monitors operate according to different operating principles: 1. Monitoring of pulses of a transducer via a current transfomer, 2.Frequency measurement of the phase current Our devices feature, depending on the type, a wide variety of functions. For a further evaluation in a higher-level control, the results are i.e. outputted as easy relay contact (over-/ underspeed) or as analog output signal resolved to the set rotation speed range.
Circuit diagram: Link
Functions: 1 = L-, 2 = L+, 3 = L-, 4 = Aux. Out, 5 = Input A, 6 = n. c., 7 = Input B, 8 = n. c., 9 = L-, 10 = Ctrl. In 1, 11 = Ctrl. In 2, 12 = Ctrl. In 3, 13 = AGND, 14 = 20mA, 15 = +/-10V, 16 = L-, 17 = RxD, 18 = TxD, 19 = Com +, 20 = Ctrl. Out 1, 21 = Ctrl. Out 2
Files to download:
Technical data
| operating voltage | 18 - 30V |
| analog output | 0 V ... 10 V / 4 mA ... 20 mA / 0 … 20 mA |
| transducer power supply | yes |
| multifunctional device | yes |
| with display | yes |
