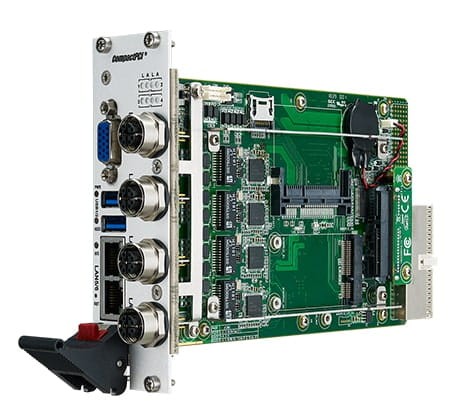

MIC-3332D1-D1E 3U CompactPCI PlusIO Intel® 6th Gen. Quad- Core™ Processor Blade
Regular price:
product unavailable
add to wish list
0
Description
Advantech MIC-3332 Series, using Intel® latest 14nm technology (code name: Skylake) to provide significant performance and power efficiency. MIC-3332 series,as a 3U CompactPCI® processor blade, is featured with a 4 cores/8 threads Core™ i7 Processors i7-6822EQ, i7-6820EQ, Xeon® Processor E3 v5 Family as E3-1505M v5 and E3-1505L v5, mating with Intel® CM236 platform Chipset Hub to support single channel up to 8GB or 16GB soldered DDR4@2133MHz memory. The graphics is embedded in processor to offer up to three independent displays per request. It is available in single and dual slots width form factors, to offer various I/O connectivity by XTM (8HP), Rear IO extensions and PlusIO. Front panel I/O on the single slot (4HP) provides 2xRJ45 GbE ports,1xVGA port and 2xUSB3.0 port. Front panel I/O on the second layer (XTM-2) provides 4xGbE port by M12 X-coding or RJ45 connectors, there are various types of storage as on board 2.5" SATA connector, Cfast socket. Additional 1x Micro-SD slot is as extension options based on user request. MIC-3332 provides an ideal solution for railway rolling stock, high-performance computing and military application. With its optimized design on EMC & thermal, it is available to meet or exceed EN 50155 and EN50121-4.
