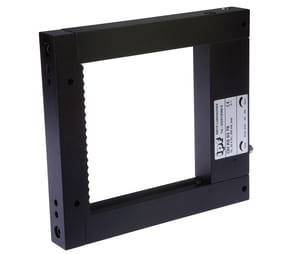

OHK00570, Optical sensor,rahmen100x98 153x140x20, 18-35V DC,200mA,M8- plug,stat/dyn, IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
Frame and ring light barriers operate according to the principle of a through-beam sensor. Within the housing there is a variety of transmitter and receiver elements that form a light curtain and thus detect various objects. Application examples for these systems are ejection control of presses, presence monitoring or length measurements of wires or tubes.
Circuit diagram: Link
Colours: A: 1 = BN (brown), 3 = BU (blue), 4 = BK (black) B: 1 = BN (brown), 3 = BU (blue), 4 = BK (black) Functions: A: 1 = L+, 3 = L-, 4 = PNP NO B: 1 = L+, 3 = L-, 4 = PNP NC
