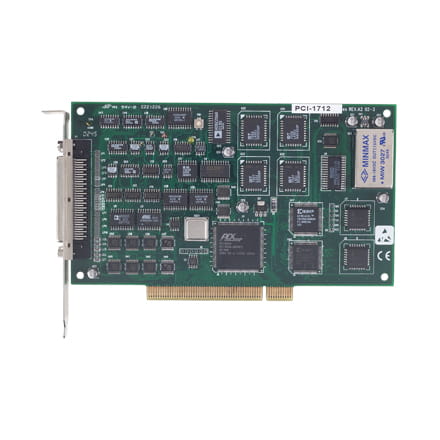

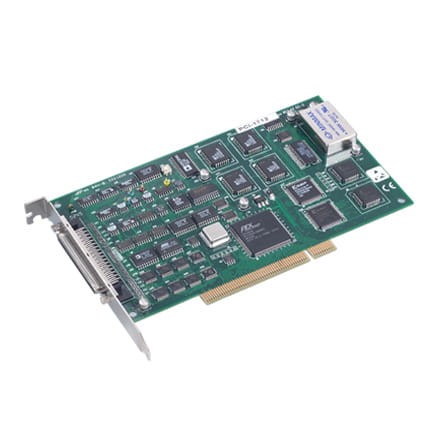

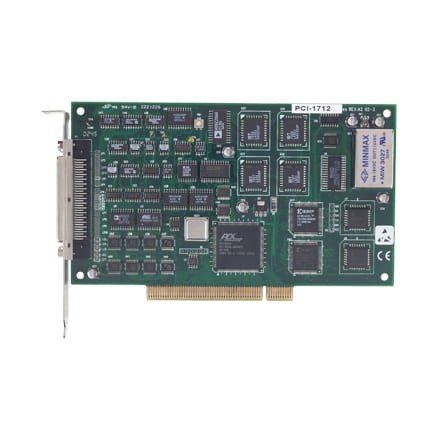

PCI-1712-BE 1M, 12bit High-speed Multifunction Card
Availability:
available on order
Dispatched within:
determined individually
Price:
€1,229.72
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
PCI-1712-BE
Description
1 MS/s, 12-bit, 16-ch Multifunction PCI Card
- 16 single-ended or 8 differential or a combination of analog inputs
- 12-bit A/D converter, with up to 1 MHz sampling rate
- Two 12-bit analog output channels with continuous waveform output function
- 16-ch digital input and 16-ch digital output
- Three 16-bit programmable multifunction counter/timers on 10 MHz
- Programmable gain
- Automatic channel/gain scanning
- Onboard FIFO memory (AI: 1,024 samples AO: 32,768 samples)
- Auto-calibration (AI/AO)
- PCI-Bus for data transfer
- Pre-, post-, about- and delay-trigger data acquisition modes for analog input channels
- Flexible triggering and clocking capabilities
