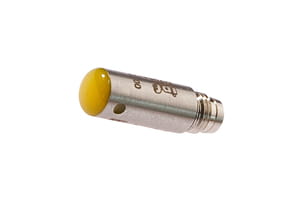

MZR9A173 sensor magn,zylinder 9rund/28lang 10-30VDC,pnp,no,150mA,M8-Stecker IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
For many tasks in the field of automation technology, it is necessary to recognize the motional processes in pneumatic and hydraulic cylinders and to detect the position of the piston with precision. For this, magnetic cylinder sensors are used.
Circuit diagram: Link
Colours: 1 = BN (brown), 3 = BU (blue), 4 = BK (black) Functions: 1 = L+, 3 = L-, 4 = PNP NO
Files to download:
Technical data
| type of rounded groove | not applicable |
| sensor surface position | center of the device |
| mounting cylinder groove | from the top |
| housing material | aluminum |
| connection | connector m8 |
| ampacity | 150mA |
| setting via teach-in | no |
| ambient temperature | -25 - 75*C |
| diameter | Ø9mm |
| output | PNP |
| hysteresis | 1mm |
| number of switching outputs | not applicable |
