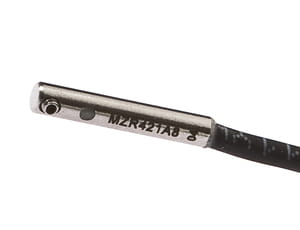

MZR421A8 sensor magn,zylinder 3,6rd/20,5lg,VA 10-30V DC,100mA,2m PUR-Kabel IPF ELECTRONIC
Regular price:
product unavailable
add to wish list
0
Description
For many tasks in the field of automation technology, it is necessary to recognize the motional processes in pneumatic and hydraulic cylinders and to detect the position of the piston with precision. For this, magnetic cylinder sensors are used.
Circuit diagram: Link
Colours: BN (brown), BU (blue), BK (black) Functions: BN = L+, BU = L-, BK = PNP NO
Files to download:
Technical data
| type of rounded groove | 3.75mm rounded groove |
| sensor surface position | border area of the device |
| mounting cylinder groove | lateral |
| housing material | stainless steel 1.4305 |
| connection | cable |
| ampacity | 100mA |
| setting via teach-in | no |
| ambient temperature | -25 - 70*C |
| diameter | Ø3.6mm |
| output | PNP |
| hysteresis | 1mm |
| number of switching outputs | not applicable |
